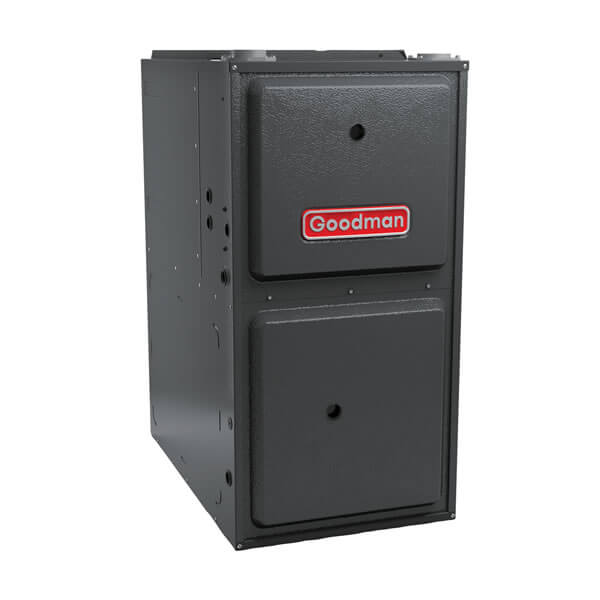

Goodman GCVM97 Furnace

Description

Up to 97% AFUE Performance
Downflow Multi-Position Installation

Standard Features

• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
• Heavy-duty aluminized-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Self-calibrating modulating gas valve auto-configure for each installation
• Durable Silicon Nitride igniter
• Quiet variable-speed induced draft blower
• Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
• Color-coded low-voltage terminals with provisions for electronic air cleaner
• Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
• Multiple continuous fan speed options offer quiet air circulation
• Auto-Comfort and enhanced dehumidification modes available
• All models comply with California 40 ng/J Low NOx emissions standard
• AHRI Certified; ETL Listed

Cabinet Features

• Designed for multi-position installation — GMVM97: upflow, horizontal left or right GCVM97: downflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting
• Convenient left or right connection for gas and electrical service
• Cabinet air leakage (QLeak) ≤ 2%
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
