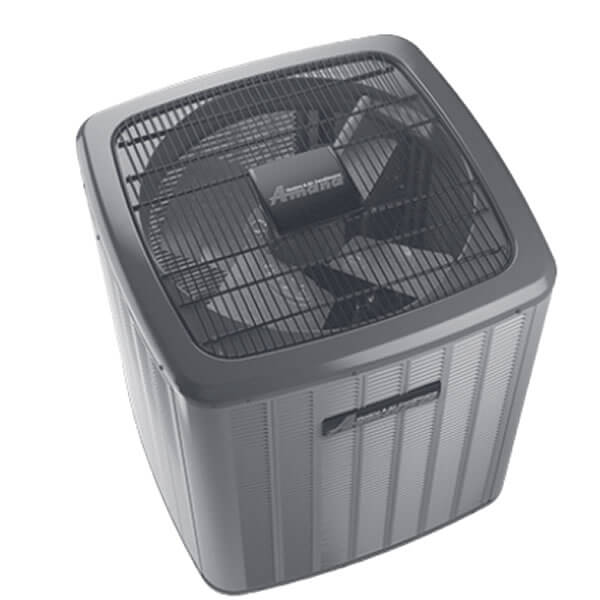

ASXC18 – Air Conditioners

Description

Cooling Capacity: 24,000 – 60,000 BTU/h

High-EfficiencySplit-System Air ConditionerUp to 19 SEER

ComfortBridge technology compatible

When your new air conditioner is paired with an Amana^® brand gas furnace with ComfortBridge technology, performance data from the spilt system is gathered and used to make automatic adjustments that may help reduce the amount of energy used to cool your home.

Always in pursuit of innovative ideas, our engineers have designed ComfortBridge technology to help your entire HVAC system cost-effectively operate at peak performance — providing consistent energy-efficient home comfort. ComfortBridge technology works with any single-stage thermostat to help create customized indoor comfort specifically for you and your family.

Quiet Comfort

You can be assured that your Amana brand air conditioner will provide you with quiet operation. To minimize operating sounds, we’ve acoustically engineered our systems with enhancements that include a compressor sound-reduction cover made of high-density foam and a specially designed sound-control top.

Energy Efficiency

Energy efficiency equates to cost savings. A gas furnace’s efficiency rating can primarily be determined by two factors: its AFUE rating (Annual Fuel Utilization Efficiency), which indicates what percentage of each dollar of natural gas purchased is actually used to heat your home; and the type of blower used in the furnace.

Standard Features

• High-efficiency two-stage scroll compressor
• High-efficiency two-speed ECM condenser fan motor
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via indoor board Blue-tooth with the CoolCloud™ phone and tablet application• Factory-installed filter drier
• Factory-installed transformer
• Factory-installed high and low-pressure switches
• High-density foam compressor sound blanket
• Copeland® ComfortAlert™ built in diagnostics
• Fully charged for 15’ of tubing length
• Factory-installed sensors monitor-ing coil and ambient temperature
• Contactor with lug connection
• In communicating mode, only two low volt-age wires to the outdoor unit are required
• AHRI Certified – ETL Listed
• Ground lug connection
• Color-coded terminal strip for non-communicating set-up
• Copper tube & enhanced aluminum fin coil• Customized control algorithms

Cabinet Features

• Heavy-gauge galvanized steel cabinet and louvered coil guards
• Service valves with sweat connections and easy-access gauge ports
• Engineered sound control top design
• Wire fan discharge grille
• Baked-on powder-paint finish with 500-hour salt-spray approval
• Single-panel access to controls with space for field-installed accessories
• Service port and controls are accessible while unit is operating
• Compact footprint
• Rust-resistant screws
• When properly anchored, meets the 2017 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
